Hand Mate HMA-100B
Hand Mate HMA-100B
Application
- For shaving, carving, drilling, polishing various materials such as wood, metal, at various level of precision and complexity (for professional use).
Advantage
- Reciprocating hand piece type B (for wood sculpture, BONSAI) with thin 14 to 20mm diameter handle for presision carving, which can be used like a pencil for complicated shaping.
- Ultra high quality type, the level of reciprocation and speed can be freely adjusted to meet the hardness and shape of the material.
- Maximum torque can be achieved even at incomparably low speed (20 r.p.m.), that allows very delicate carving.
Hand Mate HMA-100B
Hand Mate HMA-100B
Options
- High power rotating head with chucking capacity of 1 to 6mmφ
- Pencil type rotary head with chucking capacity of 1 to 4mmφ
- 1.5m flexible shaft
Hand Mate HMA-100B

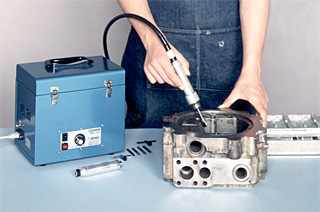

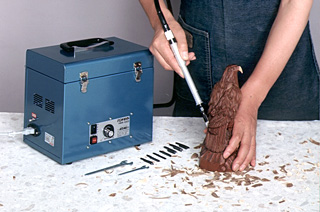

The blue motor box in the photo is the old specification. The current specifications have been changed to the switch, speed control, and fuse box.
Hand Mate HMA-100B
(Chucking dia. 1 to 6mm)
(Chucking dia. 0.5 to 4mm)
Hand Mate HMA-100B
Hand Mate HMA-100B
Specification
- Reciprocation, Amplitude
- 0 to 28,000 vib./min. 1mm
- Power
- AC100V, 50/60Hz
- Rated Power Consumption
- 300W, continuous
- Speed/min.
- 0 to 14,000 r.p.m.
- 0 to 14,000 r.p.m. speed control
- Feedback Control Method (Electronic control with constant high torque)
- Rated Torque
- 1kg-cm (MAX 3kg-cm)
